KEY FEATURES
- High dose of UV irradiation (30 mJ/cm2) sufficient to neutralize a wide spectrum of microorganisms
- Physical method of disinfection that does not require chemicals or generate any toxic byproducts

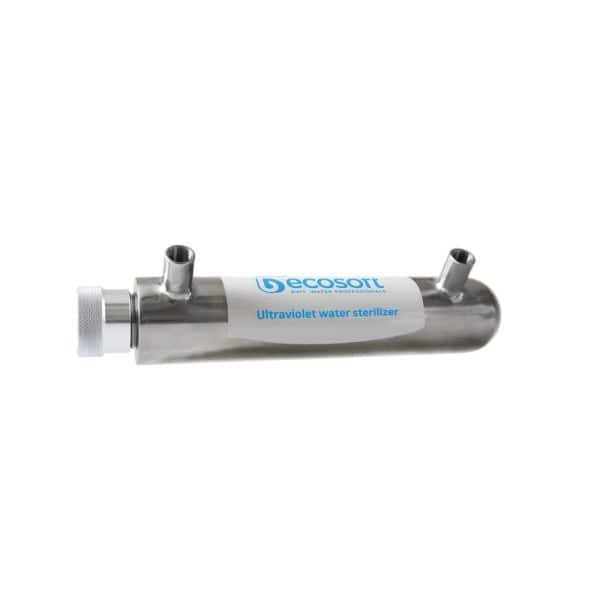

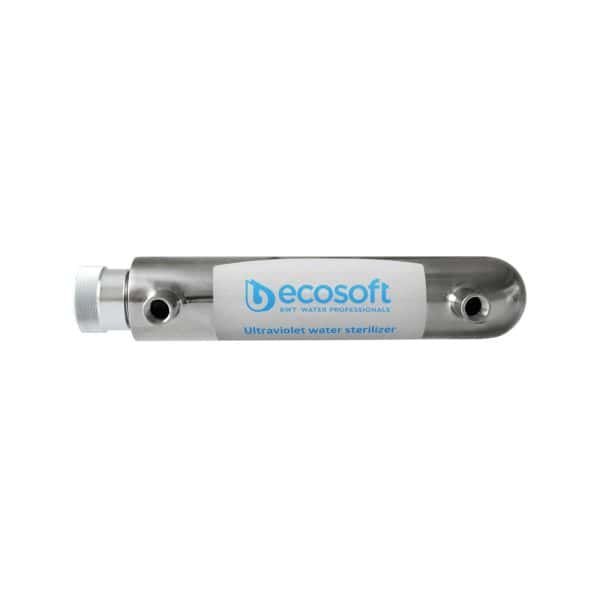

- Housing made of stainless steel by AISI 304
- The sleeve is made of high purity quartz, and is extra-resistant to formation of deposits or erosion
- Long efficient service life – up to 9 000 hours
SPECIFICATION
Operation
Water passes through the ultraviolet disinfectant, where the disinfection process takes place.
The quartz cover is a necessary measure to prevent water from entering the case of the emitter.
UV disinfection unit maintenance
- Replace the lamp once a year
- Clean components to remove mechanical impurities and plaque
Technical data
- Maximum flow of disinfected water — 0.23 m³/год
- Type and number of emitters — 1 х T510
- Maximum inlet pressure — 8 bar
- Power supply — 230 V, 50 Hz
- Power consumption of one emitter — 10 W
- Diameter of piping — ¼” thread
- Lamp failure control device — visual
- Overall dimensions of assembled unit (length x width x height) — 270 × 52 × 90 mm
- Approximate weight — 1.3 kg
Feed water requirements
- Temperature of the treated water — +4…+30 °С
- Turbidity — 0.58 mg/L
- Total hardness — 2.5 meq/L
- Iron — 0.3 mg/L
- Manganese — 0.05 mg/L
- Hydrogen sulfide — 0.05 mg/L
Set of UV disinfection system
- Stainless steel housing assembly
- Quartz sleeve
- UV emitter
- Power supply (electronic ballast)
